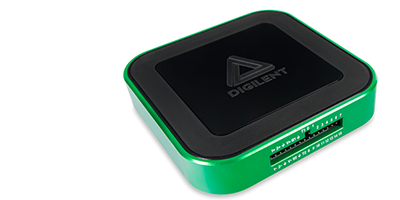

Analog Discovery 3: 125MS/s USB Oscilloscope, Waveform Generator; Logic Analyser, and Variable Power Supply

The Analog Discovery Studio is a fully functional, portable test and measurement device that can turn any cross-functional space into a pop-up electronics laboratory.

Devices in the Analog Discovery Pro 3000 series provide the utility of professional benchtop equipment with the flexibility of a portable instrument.

Digilent's Discovery USB Programmable Power Supply (DPS3340) is a three channel variable DC programmable power supply that allows users to control the power provided to their external circuits.

The ADP5250 All-In-One 1GS/s 100MHz Mixed Signal Oscilloscope, Function Generator, Power Supply, and DMM. The ADP5250 brings higher sample rate and bandwidth and a more rugged design to the Analog Discovery Pro family.

The Audio Adapter+ is a module that allows the Analog Discovery 3 to capture and analyse audio signals from external sources and easily connect audio signals generated by the device to audio devices like headphones and speakers. I

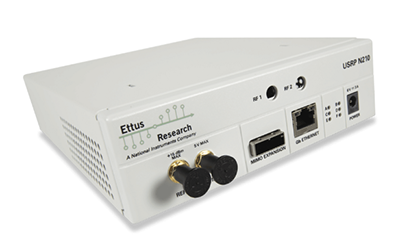

The Ettus Research™ USRP™ N210 is the highest performing class of hardware of the USRP™ (Universal Software Radio Peripheral) family of products, which enables engineers to rapidly design and implement powerful, flexible software radio systems. The N210 hardware is ideally suited for applications requiring high RF performance and great bandwidth.

The USRP B205mini-i is a flexible and compact platform that is ideal for both hobbyist and OEM applications. It is designed by Ettus Research™ and provides a wide frequency range (70 MHz to 6 GHz) and a user-programmable, industrial-grade Xilinx Spartan-6 XC6SLX150 FPGA.

The Eclypse Z7 is specifically designed to enable the rapid prototyping and development of embedded measurement systems. Featuring high-speed Zmod ports for modular expansion and a Xilinx Zynq®-7020 SoC, the Eclypse Z7 is fast and flexible, reducing the time it takes for engineers and researchers to develop innovative and powerful new high-speed instrumentation, control, and measurement systems for edge-computing, medical, and communications applications.

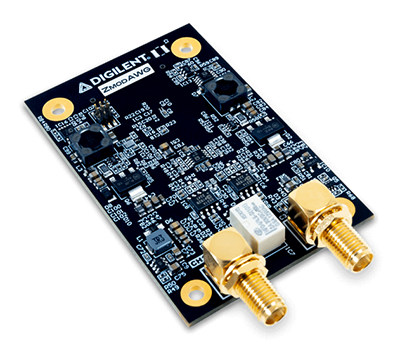

The Zmod AWG is one of Digilent's first SYZYGY-compliant expansion modules. The SYZYGY standard offers a much higher speed/bandwidth digital interface than Pmods, but at a much smaller and lower-cost form-factor than FMC, enabling the user to configure an FPGA development board with the right I/O for their application.

The MTE cable included with the Analog Discovery provides a convenient probing method for all of the inputs and outputs on the device, but is not an ideal method of connection to a breadboard. The Breadboard Adapter for Analog Discovery provides a 400 tie point breadboard or prototyping surface, that can be directly connected to the Analog Discovery.

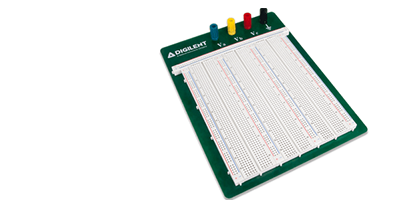

Solderless Breadboards are the ideal solution for building and learning circuits that are not intended to be permanent. Simply slide the leads into the tie points and remove when you need to rebuild or adjust.

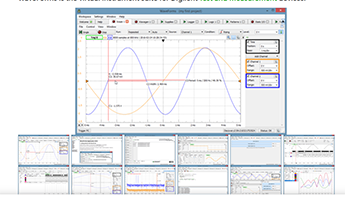

WaveForms software seamlessly connects to our USB portable oscilloscope, logic analyser, and function generator products, such as the Analog Discovery Pro family, Analog Discovery 2 & 3, Analog Discovery Studio, and the Digital Discovery, with full Windows, MacOS, and Linux support (on almost all devices). NOTE: WaveForms is FREE to download and use and can also be used without any hardware in demo mode.

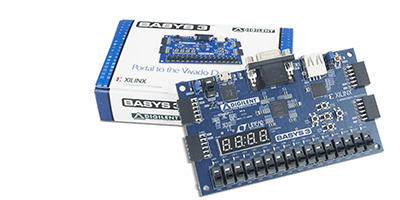

The Basys 3 is one of the best boards on the market for getting started with FPGA. It is an entry-level development board built around a Xilinx Artix-7 FPGA. As a complete and ready-to use digital circuit development platform, it includes enough switches, LEDs, and other I/O devices to allow a large number of designs to be completed without the need for any additional hardware.
